Roof Panels, fascia gutters for all four sides, 16" W pans, pre-formed corners, screws, sealant, scuppers, 3 each 10' posts, top brackets and fastener bars.
In order to offer you the lowest possible price - Shipping is not included in the Sale price of this kit - call us for a shipping quote.
Roofing: 3" Aluminum W-pans - .025
Snow load rating: 20#. sq. ft.
Delivery date:
Custom cut & packaged - Allow 2-3 weeks for shipping
-
*
-
*
-
*
-
*
-
*
-
*
-
*
W-Pan aluminum patio cover attaches to your home's wall or roof eave along the 20' width. The patio cover is available with your choice of seven fascia colors. With a 20# snow load and rated to 100 MPH winds. An aluminum cover should last the all of the useful life of your home.
Patios covers add value to your home while providing needed shade and a place to relax and enjoy the outdoors. A cup of coffee out on the patio is a welcome break in the daily routine. You will find your back yard is used more often with the addition of a new patio cover.
Your patio cover kit includes
- Free phone assistance from real installers
- Roof W-pans,
- Fascia gutters for all 4 sides,
- Pre-formed corners
- Fascia splices (if needed)
- Posts
- Top brackets with hardware
- Screws, sealant, drain scuppers
- Touch up paint.
- Options; Down spout kits, set back beam, fire place work-arounds

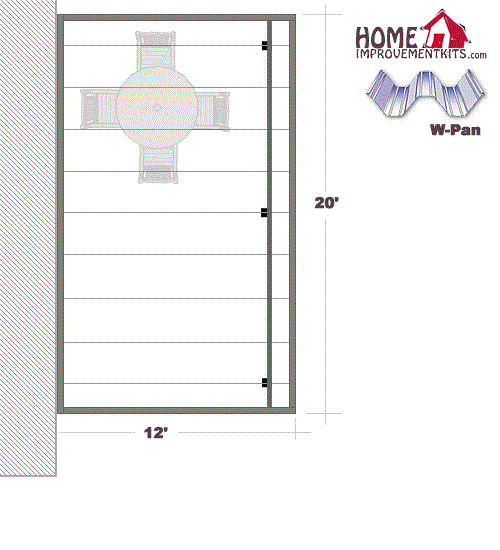

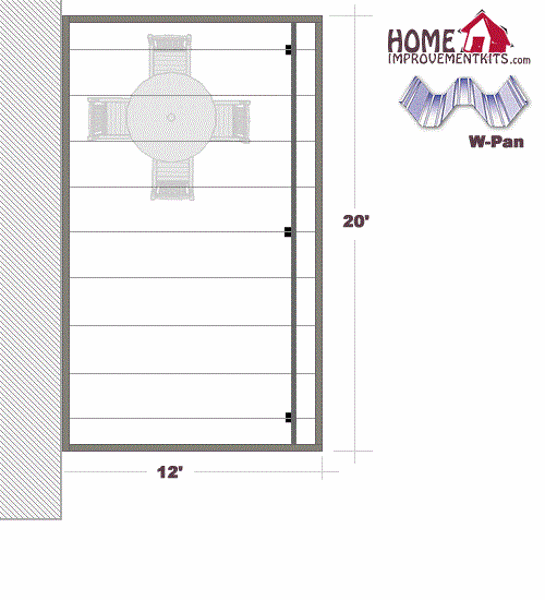

- Set-back beam (shown in diagram) is optional and not included in price
- NOT included - floor anchors, flashing, wall attachment hardware or any special hardware peculiar to your job.
Aluminum Patio Cover Details:
- This is a pre-engineered system.
- The systems are designed to the 2000 -2003 International Building Codes and the Florida 2001 code.
- Standard engineering plans are available, custom engineering is available at an additional cost.
- The above quotations are based on live load ratings of 20# or 30# per square foot and wind ratings of 90 to 100 mph.
- Your front height should have a ¼” drop per foot of projection. (6" to 12" drop)
- The 10' aluminum posts, need to be cemented into the ground at least 2 feet. Optional 8' long post with bottom brackets are available for attaching to decks or concrete patios.
- Optional 8' long post with bottom brackets are available on request, for attaching to decks or concrete patios at the same price as 10' post .
- The posts will attach under (to) the front gutter. Space the post evenly along the front gutter of the cover. Keep the first post with in 1’ of the front corner, or follow the engineered drawings specifications.
- Optional Set back beam: A 6.75" aluminum "CEE" set back beam can be ordered to create a over hang on the front of your cover. The post then attach to the beam instead of to the gutter. This is a stronger installation and looks better. 18" over hangs look the best, you can make the over hang up to 32".
- Optional fireplace work around kit can be added to your cover kit. This kit includes 2 extra outside pre-formed corners, 2 pre- formed inside corners, 4' foot more gutter / Fascia and extra chalking. Use this when a fire place chimney has to be worked around.
- Optional Down spout kits, Your patio kit comes with scuppers. You can use down spouts instead of scuppers to direct water away from the patio. Each kit contains every thing you need to install one down spout. Order two down spout kits if you want one on each end or the cover or your cover is over 200 square feet.
Features:
- 20 & 30 lb./sq. ft. snow load rating, 100 MPH wind rating.
- Fascia gutters colors; White, Colonial blue, Colonial gray, Dark bronze, Ivory, Clay
- Pre-formed fascia corners
- Factory painted post.
- W-Pans white or ivory
- Beams available in white or dark bronze (Optional unless noted otherwise)
- 3” x 3” x 10’ .078 ga. Aluminum Posts available in white, ivory or dark bronze.
- (8’ post with brackets available on request)
- For free standing covers see carports.
- Covers can be can be cut down to the exact size you need.
- Order the larger size than the size you need and cut it down to size on site as you build it.
- Custom sizes available just let us know what you need and we will quote it.
- All aluminum for a rust free long useful service life
In non-snow regions, covers can span up to 14' in projection before a support beam is needed. Covers can project past a set back beam up to 36”
NOTE: To meet a 30#. snow load, and 100mph wind speed,
the panels maximum span is 9’ for .025 pans
and 10' 8” for .032 pans
3"x 3” square posts are needed a minimum of every 8' along the width of the cover.
(Spans are measured from the attaching point out to the support post or support beam.)
Orders normally take 2 to 3 weeks to be delivered to your home or business. Technical help is available M-F, 10AM-5PM SST 1-888-814-7531
